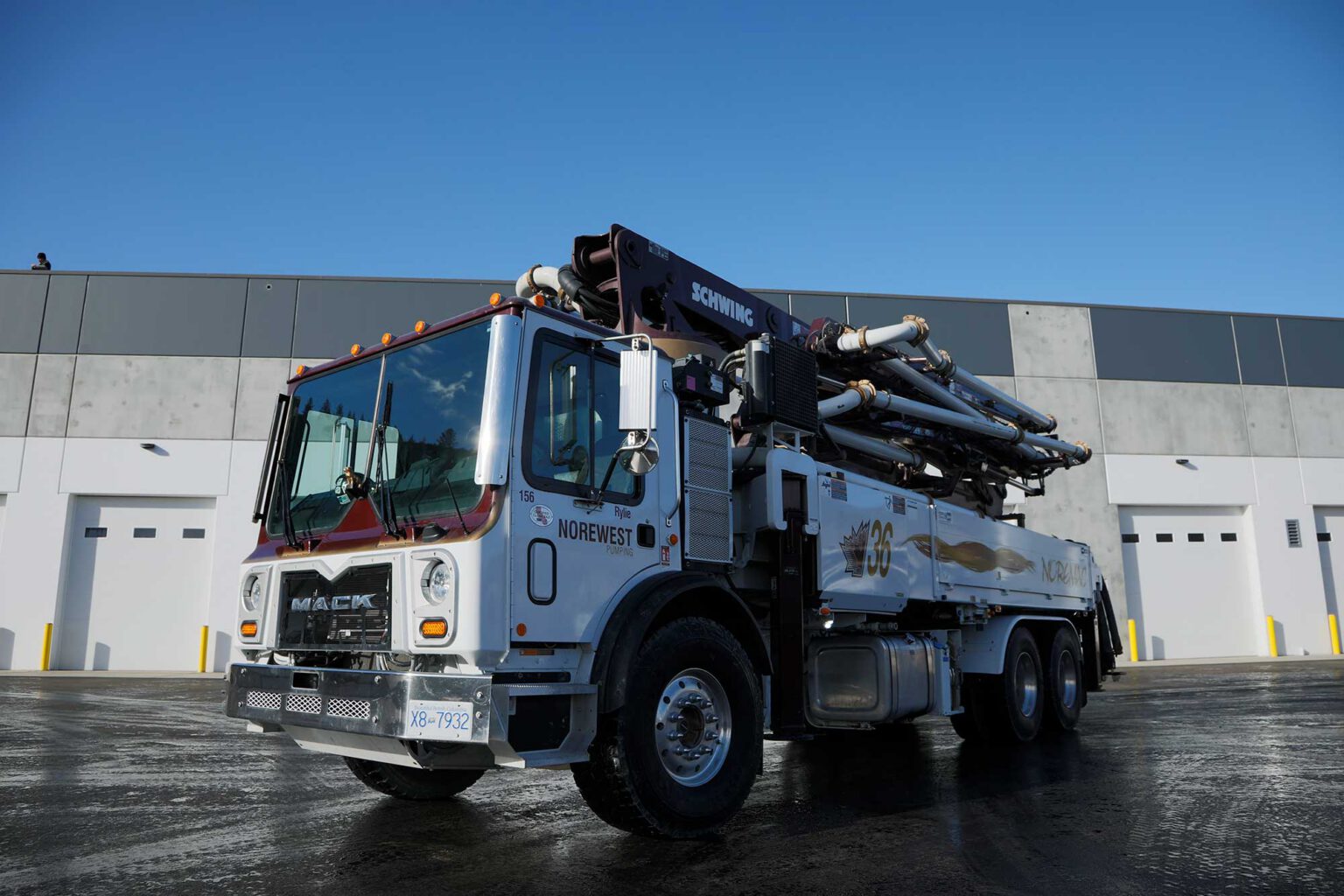

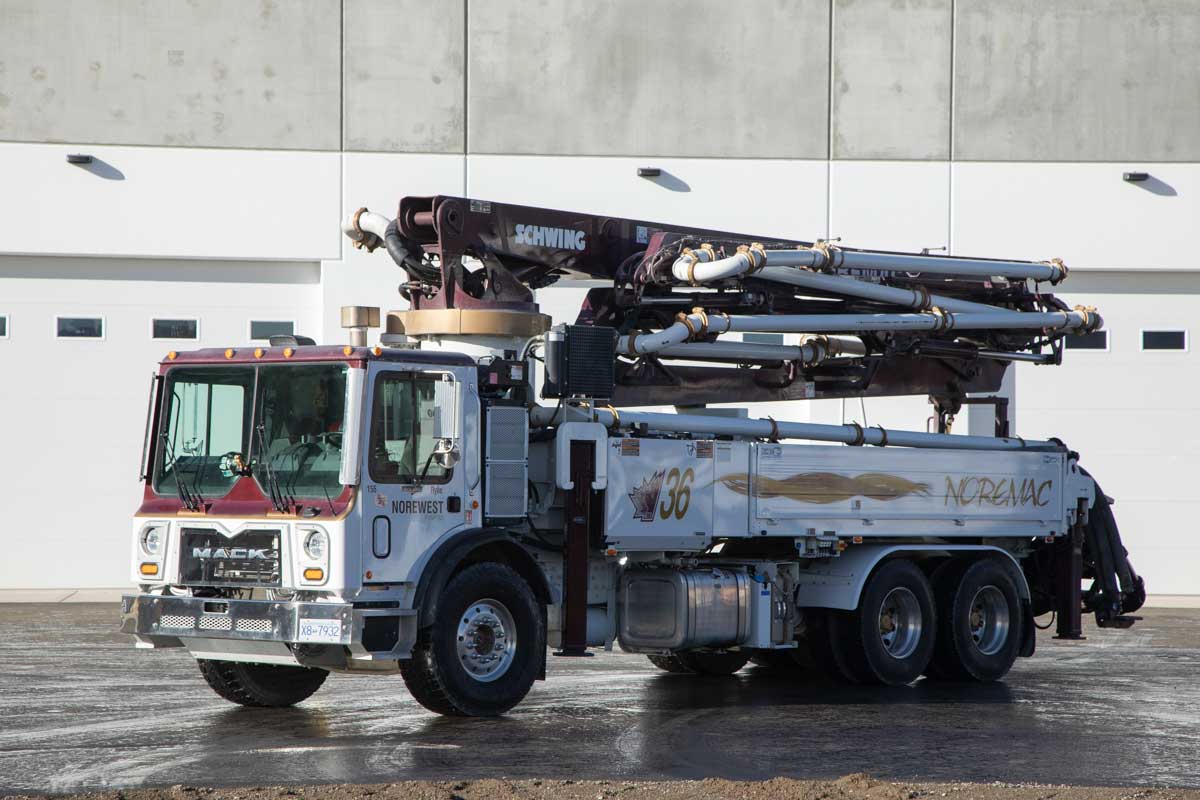

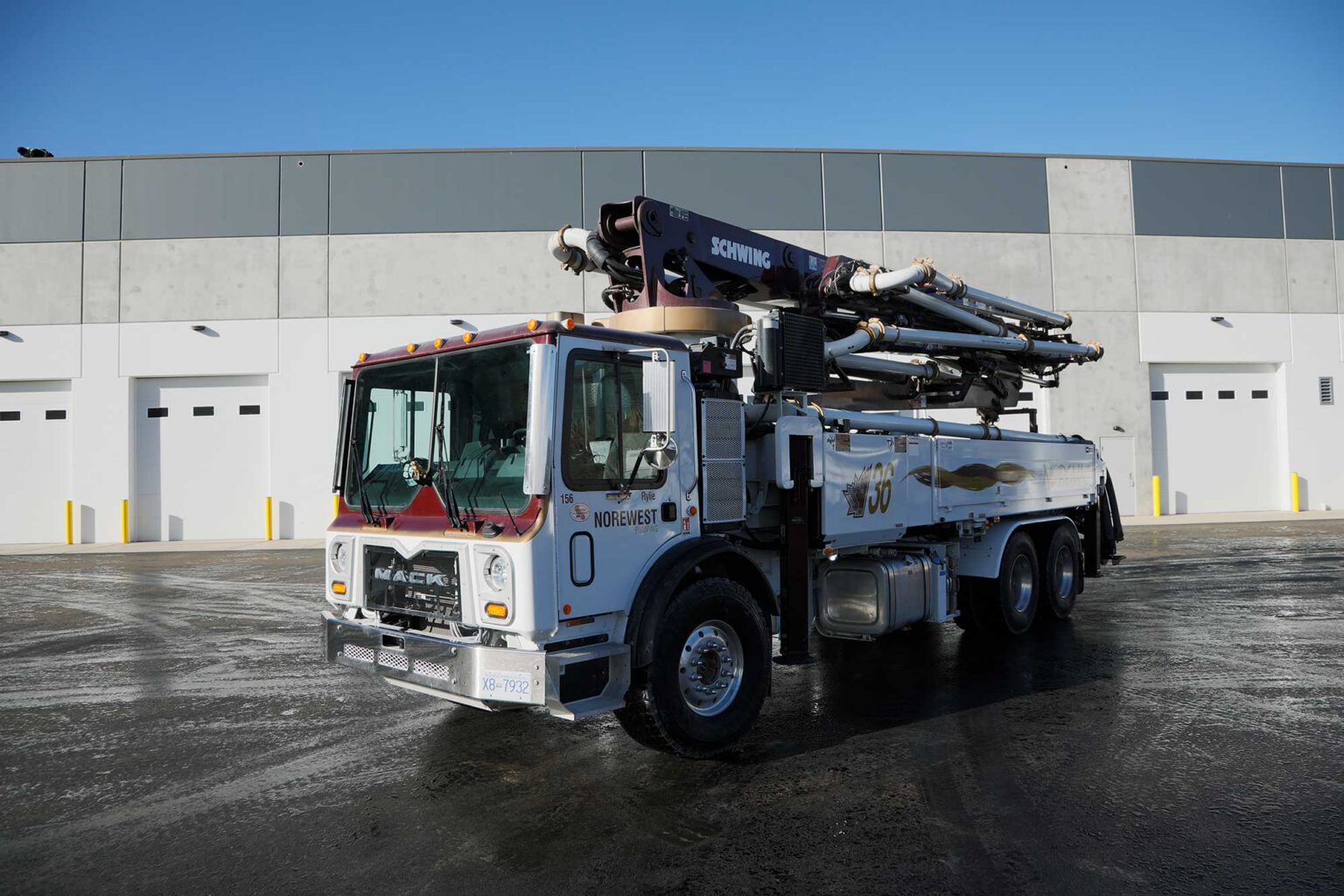

Truck-Mounted concrete pump with 4-section placing boom
|
|
U.S. |
Metric |
| Vertical Reach |
115′ 6″ |
35.2 m |
| Horizontal Reach |
102′ 6″ |
31.2 m |
| Below Grade Reach w/ Tip Hose |
78′ 9″ |
24 m |
| Pipeline Diameter |
5 in |
125 mm |
| Boom Type / Sections |
Full Articulation, Roll & Fold® / 4 |
| Boom Rotation |
740 degrees |
| Unfolding Height |
27′ 4″ |
8.3 m |
| Outrigger Type – Front |
X Outriggers, Fully Hydraulic,
Extension & Jacking |
| Outrigger Type – Rear |
Hydraulic Slewing & Jacking |
| Outrigger Soil Pressure w/o Dunnage (front/rear) |
419/331 psi |
28.9/22.8 bar |
| Outrigger Soil Pressure w/ Dunnage (front/rear) |
76/60 psi |
5.2/4.1 bar |
| Outrigger Width – Front |
20′ 5″ |
6.2 m |
| Outrigger Width – Rear |
18′ 8″ |
5.7 m |
| Outrigger Length |
28′ 1″ |
8.5 m |
