The 47 metre pump offers the proven Overhead Roll and Fold boom used by pumpers and contractors for large commercial projects and civil work. The four-section boom’s versatility provides high utilization with 745-degrees of articulation with the design advantage of always unfolding towards the pour area. With 152-feet of vertical reach, the 47 metre easily pumps midrise buildings while providing thousands of feet of coverage from one set-up. On flatwork applications such as slabs and bridge decks, the pump’s 139-feet of horizontal reach and 380-degree slewing range allows maximum production from one location. We’ve got you covered, throughout Western Canada! Rent a 47SX Boom for your job site in Edmonton, Kamloops, or Salmon Arm.
| Truck Mounted Concrete Pump With 5-Section Hyper Extension Roll & Fold Placing Boom |
||
|---|---|---|
| U.S. | Metric | |
| Vertical Reach | 151′ 3″ | 46.1 m |
| Horizontal Reach | 134′ 5″ | 41 m |
| Below Grade Reach w/ Tip Hose | 106′ 4″ | 32.4 m |
| Pipeline Diameter | 5 in | 125 mm |
| Boom Type / Sections | Hyper Extension, Roll & Fold®/ 5 | |
| Boom Rotation | 730 degrees | |
| Unfolding Height | 32′ 2″ | 9.8 m |
| Outrigger Type – Front | Super X Outriggers, Hydraulic Slewing & Jacking |
|
| Outrigger Type – Rear | Hydraulic Slewing & Jacking | |
| Outrigger Soil Pressure w/o Dunnage (front/rear) | 696/769 psi | 48/53 bar |
| Outrigger Soil Pressure w/ Dunnage (front/rear) | 98/96 psi | 6.8/6.6 bar |
| Outrigger Width – Front | 29′ 4″ | 8.9 m |
| Outrigger Width – Rear | 30′ 5″ | 9.3 m |
| Outrigger Length | 31′ 9″ | 9.6 m |
| PUMP SPECIFICATIONS- 2023-5 130/80 MPS | ||
| U.S. | Metric | |
| Theor. Concrete Output | 213 cu yds/h | 163 cu m/h |
| Max. Pressure on Concrete | 1169 psi | 81 bar |
| Max. Strokes Per Minute | 22 | |
| Max. Aggregate size | 2.5 in | 63.5 mm |
| Material Cylinder Diameter | 10 in | 254 mm |
| Material Cylinder Stroke | 98 in | 2500 mm |
| Differential Cylinder Diameter | 4.7 in | 120 mm |
| Maximum Oil Flow | 158.5 gal/min | 600 l/min |
| Hydraulic Circuitry Type | MPS | |
| Valve Type | B Rock | |
| *Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice. | ||

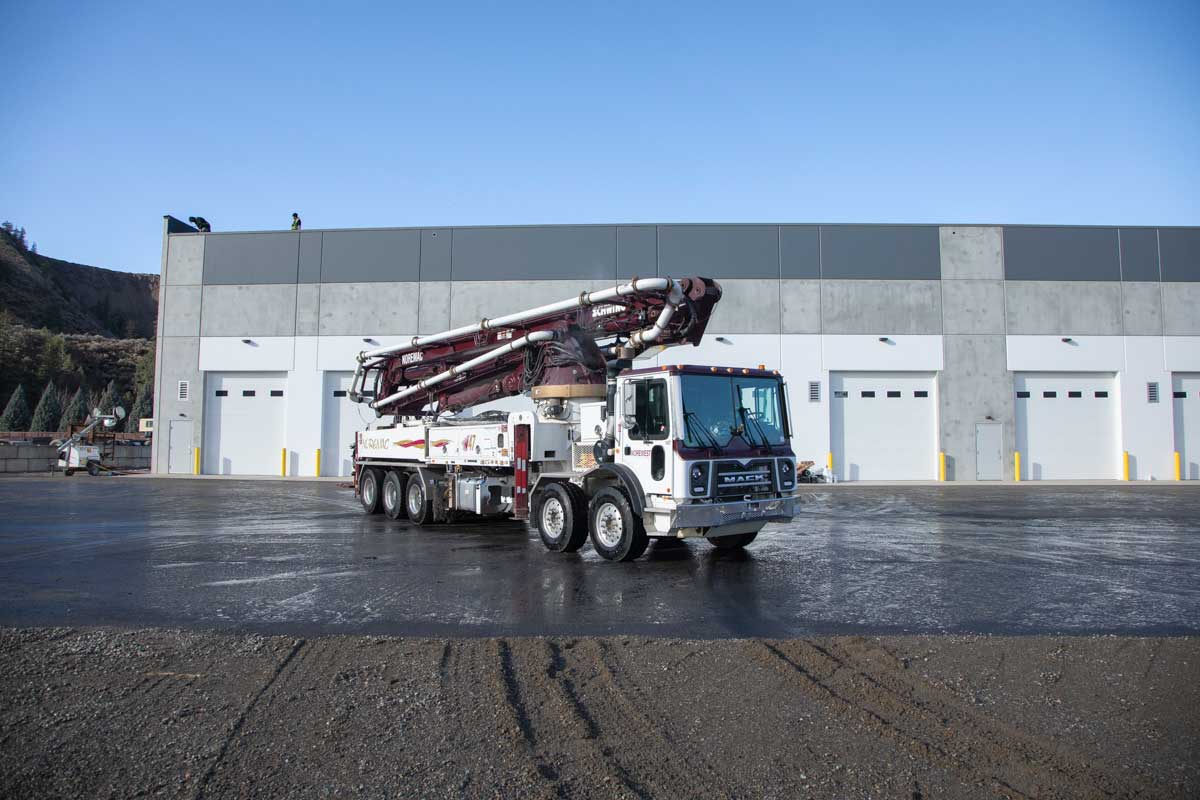

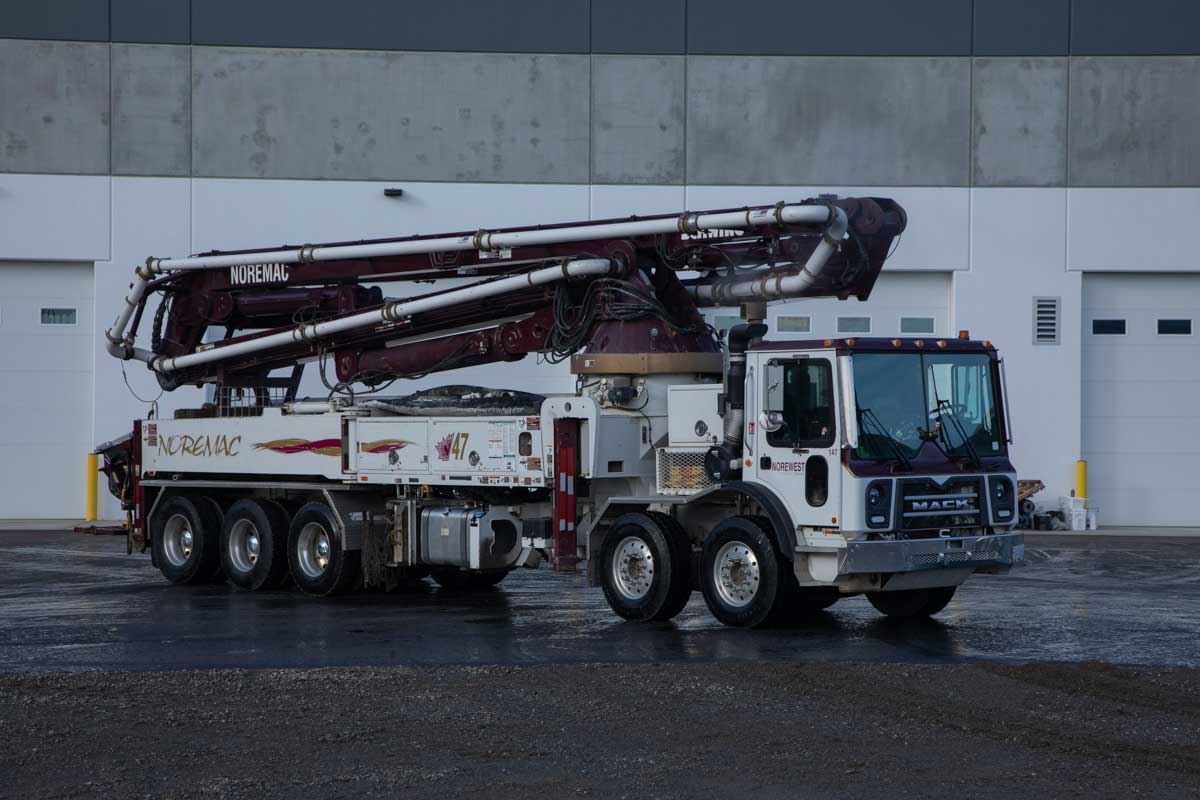

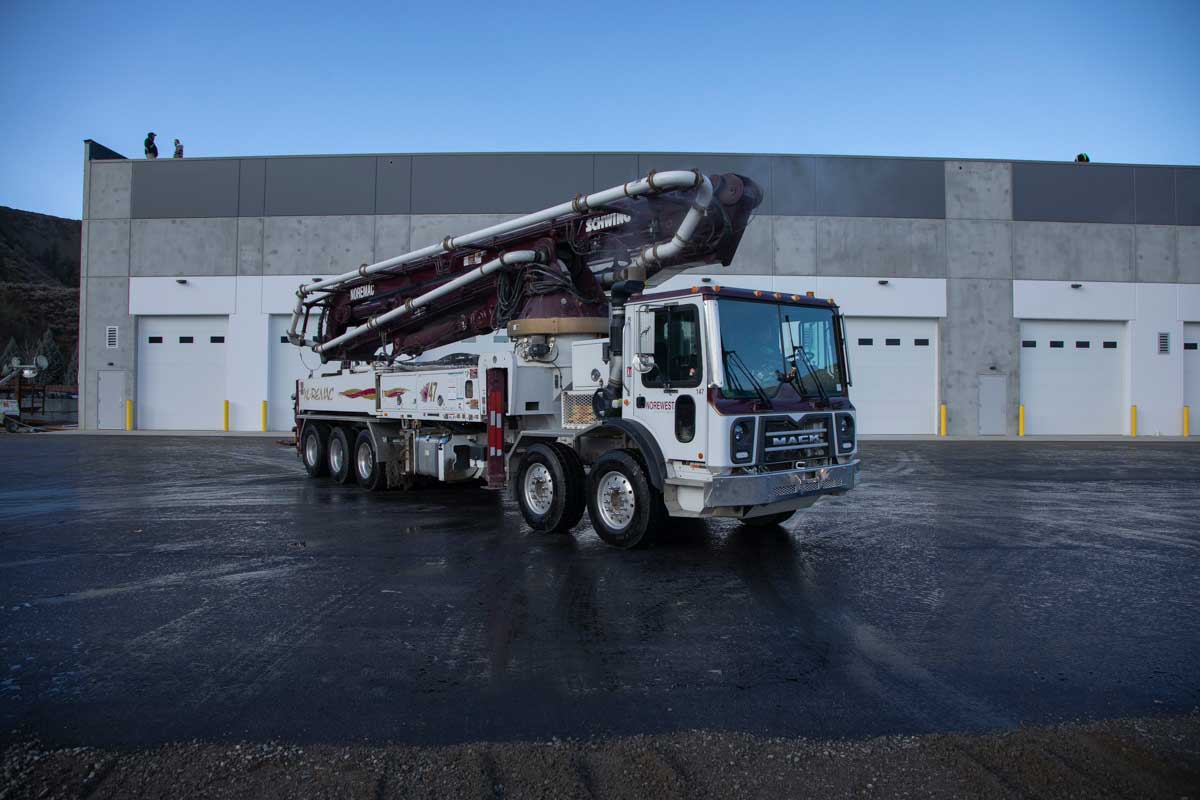

Noremac's 47SX Booms
